EA Magnetic position sensor for narrow space installation
Features :
• Non-contact measurement, never wear
• Absolute position output, no need to return to zero
• Nonlinearity, less than ±0.10% of full scale
• Repeatability, better than ±0.004% of full scale
•Ф17 stainless steel tube, durable and economical
•External aluminum support installation, simple structure, easy installation
Technical parameter
|
Measuring range |
50~1500mm |
|
Operating Voltage |
24VDC (-15/+20%) overvoltage protection, reverse polarity protection |
|
output signal |
4～20mA, 20-4mA, 0～10Vdc, 10~0Vdc,0～5Vdc,5~0Vcd, RS485 |
|
Performance |
Non-linearity <±0.10%F.S, repeatability <±0.004%F.S |
|
Resolution |
12-bit D/A |
|
Operating temperature |
- 40℃～+85℃ |
|
Stem material |
Stainless steel 304, 316 |
|
Measuring rod pressure |
35MPa continuous/70MPa peak |
|
Protection class |
IP67 or IP68 can be customized |
|
Installation method |
Aluminum bracket installation,Threaded installation, |
|
Way out |
Straight out cable |
Dimension
Installation

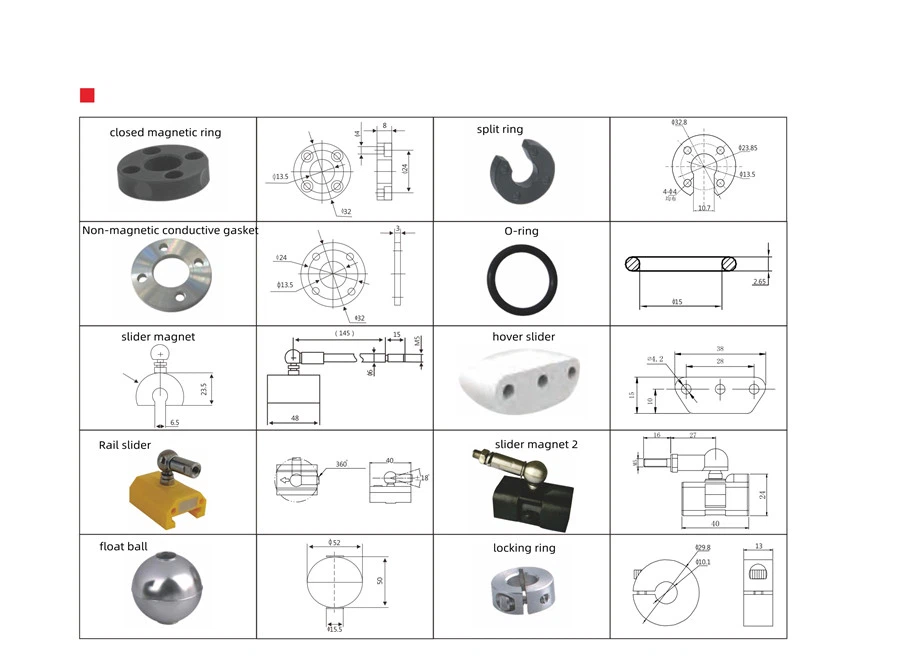

Part list
|
Type |
Name |
Quantity |
|
Position sensor |
Magnetic ring/slider |
1 |
|
special screw |
4 |
|
|
washer |
1 |
|
|
Non-magnetic conductive gasket |
1 |
|
|
liquid level sensor |
Float ball |
1 |
|
locking ring |
1 |
|
|
Hexagon socket screws |
1 |
Application
Industrial Automation: Detecting valve positions, door positions, fluid levels, tool positions, and precise machine control and monitoring.
Automotive Industry: Measuring positions of brake, steering, gear, seat belts, doors, windows, sunroofs, headlights, and providing inputs to the engine control unit (ECU) for functions like speedometer, antilock brakes, automatic transmissions, and park assistance.
Hydraulic and Pneumatic Cylinders: Measuring the position and displacement of hydraulic and pneumatic cylinder rods, commonly used in construction, mining, and manufacturing equipment;
Robotics: Determining the position of various robotic components relative to each other, such as robotic arm positioning and surgical robotics.
Water Level Sensing: Measuring water levels in tanks, reservoirs, and other containers.
The magnetostrictive principle allows these sensors to measure position and displacement without physical contact, providing high accuracy, repeatability, and durability in harsh industrial environments.
