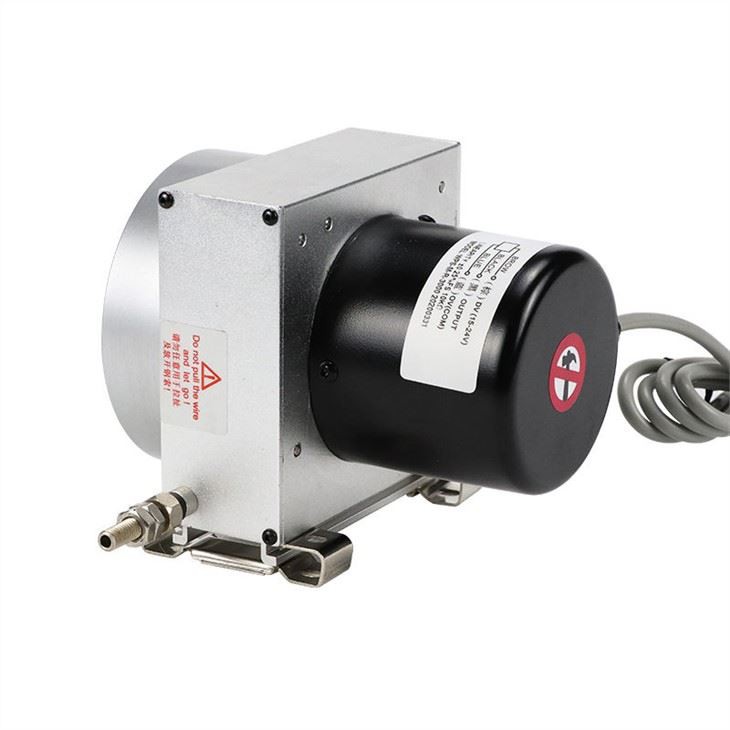

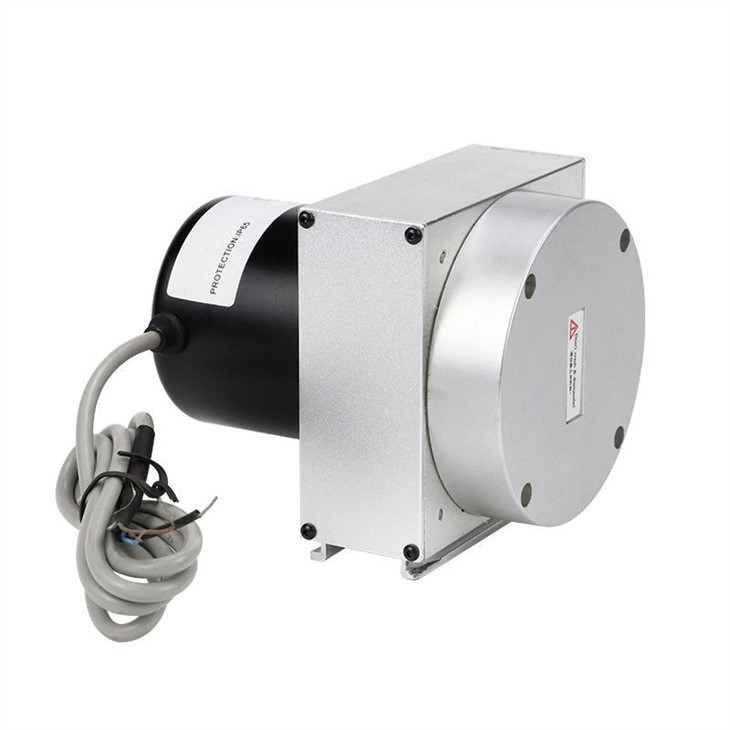

WPS Draw Wire Position Sensor
WPS draw rope displacement sensor, measuring range 100mm-30000mm, there are S type (small, 100-2500mm), M type (medium, 500-7500mm), L type (large, 7000-15000mm), XXS type (mini, 100-600mm) ), XS type (miniature, 100-1000mm), XL type (super large, 15000-30000mm). Sensor output signals are: resistance output(5K or 10K), voltage output (0-5V, 0-10V, three-wire system or four-wire system), current output (4-20mA, two-wire system, three-wire system or four-wire system; 0-20mA, two-wire system, three-wire system System or four-wire system), pulse output (AB phase or ABZ phase pulse square wave, differential signal output), RS485 digital signal output or absolute value encoding output.
Features:
1.Long service life, up to 5 million operations;
2.High accuracy, linear accuracy ±0.15%, repeatability accuracy ±0.02%, pulse output resolution up to 0.018mm;
3.Diverse models, multiple signal output options, convenient for system acquisition or long-distance transmission;
4. high protection level, waterproof type can be customized for outdoor use.
Technical parameter
Dimension
Package
The accessories package is included in the delivery (2 fixing brackets and 4 fixing screws)
Application
Draw wire position sensor applications: storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control.
Our advatage :
1. Strong production capacity . we are factory and we also have a a lot of in -stock productions in warehouses ,we can meet large demands from our customers ,and deliver the orders on time .the wholesale order,small order and trial order are accepted and welcomed .
4.Excellent sales&after-sales service .we are headquartered in shenzhen ,and have branches all over china.we guarantee life-long for all products .we can offer you the competitive perfect products .
FAQ
Q1: What's the payment term?
A: We accept T/T (Bank Transfer), Western Union, Paypal, Wechat pay.
Q2: Can I have a sample products for testing?
A: Yes you can buy sample product.
Q3: What's the MOQ?
A: MOQ: 1 pc
Q4: Can you custom-made products for customer?
A: Yes, we offer OEM Customized Products, like logo, extend sensor length, stroke length, custom lines, connectors.
Q5: What's the lead time?
A: 3-5 days for standard products. Customized commodity please confirm with suppliers.
Q6: How to send the products ?
A: By express, like DHL, FedEx, TNT, UPS etc.
