TS Smallest Magnetostrictive sensor
There are two types of hydraulic cylinders for magnetostrictive displacement sensors: external and built-in. The built-in magnetostrictive displacement sensor has high accuracy, good reliability, simple structure, and easy maintenance and replacement.
Features :
• Built-in cylinder, the smallest volume, suitable for compact cylinders
• Completely replaces potentiometers and inductive displacement
• Non-contact measurement, never wears out
• Absolute position output, no need to return to zero
• Nonlinearity, less than ±0.05% of full scale
• Repeatability, better than ±0.002% of full scale
Technical parameter
|
Measuring range |
50~2000mm |
|
Operating Voltage |
24VDC (-15/+20%) overvoltage protection, reverse polarity protection |
|
output signal |
4～20mA, 0～10Vdc,0～5Vdc, |
|
Performance |
Non-linearity <±0.05%F.S, repeatability <±0.002%F.S |
|
Resolution |
16-bit D/A |
|
Operating temperature |
- 40℃～+85℃ |
|
Stem material |
Stainless steel 304, 316 |
|
Measuring rod pressure |
35MPa continuous/70MPa peak |
|
Protection class |
IP65 |
|
Installation method |
Cylinder built-in installation, extrusion installation |
|
Way out |
Straight out cable or ,M12*1 connector |
Dimension
Installation
Part list
|
Type |
Name |
Quantity |
|
Position sensor |
Magnetic ring/slider |
1 |
|
special screw |
4 |
|
|
washer |
1 |
|
|
Non-magnetic conductive gasket |
1 |
|
|
liquid level sensor |
Float ball |
1 |
|
locking ring |
1 |
|
|
Hexagon socket screws |
1 |
Package
Normally we pack the sensor with paper tube, which is thick and strong enough . For long working range sensors , we will pack the sensor with hard plastic tube or wooden box . There will no damage because of the package .
Delivery
we can arrange delivery all over the world by air express or sea cargo. We will choose the suitabe and safe delivery channle fot all the customers .
Appllication
♦ hydraulic control system, metallurgical equipment, wind power generation
♦ engineering machinery, rubber machinery
♦ port machinery, injection molding machine
♦ hydroelectric power stations, solar power plants, real-time monitoring of the reflection angle
♦ flight simulator
Workshop
Why choose us ?
Quick delivery
For standard models , the lead time is 7 days , for customize products and big quantity , the lead time is 15-25days
OEM servince
We can print custoners' logo on the sensors or the package .
Secure payment
100% secure payment
24/7 Support
We are always on line .
Honor and qualification
Official certification, professional after sales service.

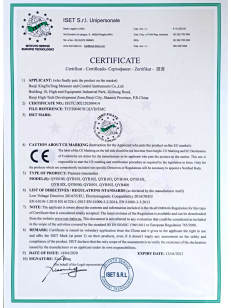

Certificate CE
Certificate ISO
Certificate CE
Certificate CE
Certificate roHS
