BRG-HX004 Doughnut Load Cell Compression Circle Force Sensor
1. Small size: Doughnut Load Cell are usually small in size and can adapt to limited space requirements.
2. Lightweight: Their design makes them lightweight, making them easy to install and use.
3. No moving parts: Micro force sensors usually have no moving parts, which helps improve their reliability and durability
4. High reliability: Due to its simple structure and no moving parts, the failure rate of micro force sensors is low, ensuring improved its stability under long-term operation.
5. Mass production: Due to advancements in design and manufacturing technology, micro force sensors can be produced on a large scale One step cost reduction.
6. Easy to integrate
Technical Parameters
|
|
||
|
Rated quantitative schedule |
KN |
200 |
|
Output sensitivity |
mV/V |
1.0±10% |
|
Zero point output |
%F.S. |
±2 |
|
Non-linear |
%F.S. |
0.3 |
|
lag |
%F.S. |
0.1 |
|
Repeatability |
%F.S. |
0.1 |
|
Creep (30 min) |
%F.S. |
0.1 |
|
Temperature sensitivity drift |
%F.S./10℃ |
0.1 |
|
Zero temperature drift |
%F.S./10℃ |
0.1 |
|
Response frequency |
Hz |
1k |
|
Material |
17-4PH stainless steel |
|
|
impedance |
Ω |
700 |
|
Insulation resistance |
MΩ/100V DC |
≥5000 |
|
Use voltage |
V |
5-15 |
|
Operating temperature range |
℃ |
-20-80 |
|
Safety overload |
%R.C. |
120 |
|
Extreme overload |
%R.C. |
150 |
|
Cable line specifications |
m |
Φ5*2m |
|
Cable limit pull force |
N |
98 |
|
TEDS |
可选 |
|
Dimension (mm)
|
Range(kN) |
0.5 |
1 |
2 |
5 |
10 |
20 |
|
Φ(mm) |
4-16( customizable) |
|||||
|
range(kN) |
10 |
20 |
50 |
100 |
200 |
|
Φ(mm) |
7-30( customizable) |
||||

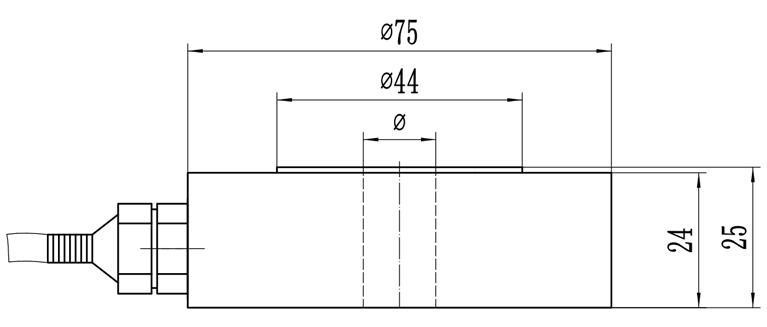

Force Diagram
