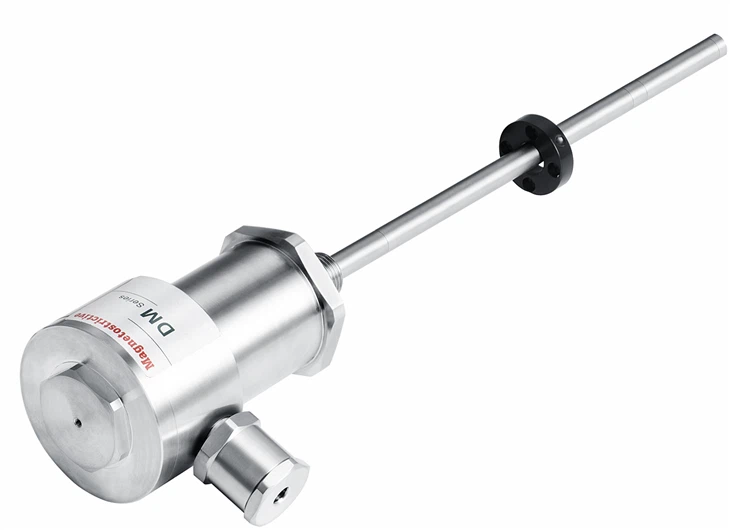

Explosion-proof Magnetostrictive Linear Position Sensors

• Fully sealed structure, robust and durable • Non-contact measurement, never wear • Absolute position output without zeroing • Nonlinearity, ±0.01%F.S of full scale • Repeatability, ±0.001%F.S of full scale • Optional zero to full

Send Inquiry

Description

MD Explosion-proof Magnetostrictive linear position sensors

product-1240-900

Features :

1. All stainless steel shell, strong and reliable

2. Non-contact measurement, never wear

3. Absolute output, no need to zero

4. Suitable for explosion-proofrequirements

5. Low power consumption design, effectivelyreducing system temperature drift

6. Full scale adjustable, 100% adjustable zero point and full scale

Technical parameter

Range 50~5000mm

output singal analog,SSI

resolution Analog 16-bit D/A or 0.0015% of full scale

SSI 1/2/5/10/20/50/100μm

Non-linearity <±0.02%F.S(Min±50μm)

Repeatability <±0.002%F.S(Min±1μm)

Update time 0.5ms(Min<1m)1.0ms(1m<<2m)

2.0ms(2m

Electrical Characteristics

Outlet Direct outlet or side

outletInput voltage 24VDC(-15/+20%)

Working current <60mA(Varies with range)

polarity protection Max-30VDC

Overpressure protection Max36VDC

Insulation ability 500V(Between signal ground and shell)

Dimension

MD size

Electrical connections

Structure and Materials

Electronic warehouse 304 stainless steel

Rod 304/316 stainless steel

mounting flange 304stainless steel

Outer pipe pressure 35MPa(continuous)/70MPa(peak)

Working conditions

Magnet speed Any

Ambient temperature -40℃~+85℃

Humidity/Dew Point humidity90%,no condensation

Temperature Coefficient <±0.007%F.S/℃

Electrical protection IP67 IP68-Special custom

Common Faults and Troubleshooting Methods

Output signal	Error	Possible cause of failure	Solution
4-20mA	Output <4mA	The sensor works in the upper dead zone	Adjust the installation position
	Output >20mA	The sensor works in the lower dead zone	Adjust the installation position
	Output 0mA	1. The magnetic ring falls off 2. Power supply failure 3. The wiring is not firm	Check ferrite, power supply and wiring
	Unstable output	1. The magnetic ring is not installed firmly 2. Insufficient power supply	Check ferrule and power supply
0-5V	Output<0V	The sensor works in the upper dead zone	Adjust the installation position
	Output>5V	The sensor works in the lower dead zone	Adjust the installation position
	Output 0V	1. The magnetic ring falls off 2. Power supply failure 3. The wiring is not firm	Check ferrite, power supply and wiring
	Unstable output	1. The magnetic ring is not installed firmly 2. Insufficient power supply	Check ferrule and power supply
0-10V	Output <1V	The sensor works in the upper dead zone	Adjust the installation position
	Output >10V	The sensor works in the lower dead zone	Adjust the installation position
	Output 0V	1. The magnetic ring falls off 2. Power supply failure 3. The wiring is not firm	Check ferrite, power supply and wiring
	Unstable output	1. The magnetic ring is not installed firmly 2. Insufficient power supply	Check ferrule and power supply

Application

Explosion-proof magnetostrictive displacement sensors have other application areas, such as in oil well platforms, oil tanks, oil storage and transportation monitoring, petroleum and chemical equipment, refining, oxygen transmission systems, hydrogen equipment, power plants, boilers, thermal power units, petrochemical, environmental protection, compressed air, light industry, machinery, metallurgy, and other measurement environments with explosion protection requirements.
