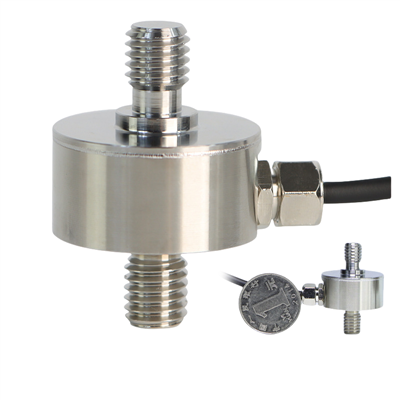

Miniature Load Cell Force Transducer BRG639HB
Introduction
Compared with conventional sensors, our products are small in size, enable many new functions, facilitate high-volume and high-precision production, have low single-room costs, and are easy to purchase into large-scale and multifunctional arrays. Convenience and other characteristics, especially suitable for smaller occasions.
Feature
1.Alloy steel elastomer, rubber seal or welded seal treatment, external nickel plating, good waterproof, anti-corrosion, protection grade IP66;
2.The product has high cost performance and fine workmanship;
3. The Miniature Load Cell Force Transducer adopts fully sealed stainless steel laser welding technology and is filled with helium to protect the reliability of the internal circuit;
4. The Miniature Load Cell Force Transducer has added protection circuit and lightning strike design, with high safety.
Technical parameter
Type | BRG639HB |
Maximum capacity (E)max/KG | 0.1-2 |
Temperature effect on zero b balance (TK0)/%F.S/10℃ | ±0.5 |
Sensitivity(Cn) /mV/V | 1.0±0.15 |
Temperature effect on sensitivity (TKC)/%F.S/10℃ | ±0.05 |
Non-linearity(dlin) /%F.S | ±0.05 |
Hysteresis error(dhy) /%F.S | ±0.05 |
Repeatability /%F.S | ±0.05 |
Creep(3min) /%F.S | ±0.05 |
Off center load error /%F.S | ±0.1 |
Zero balance /mV/V | ±0.1 |
Input resistance (RLC) /Ω | 1000±10 |
Ouput resistance (RO) /Ω | 1000±10 |
Reference excitation voltage (Uref) /V | 5 |
Operating voltage (Bu) /V | 3~10 |
Insulation resistance (Ris) at 100 VDC /GΩ | 2 |
Service temperature range (Btu) /℃ | 0 ~ +40 |
Storrage temperature range (Btl) /℃ | -10~ +60 |
Safe load limit (EL) /% of Emax | 120 |
Breaking load (Ed) /% of Emax | 150 |
Deflection at Max.capacity /mm | <0.5 |
Material: | Aluminum |
Degree of protection | IP65 |
Dimension(mm)
Wire connection
Package & Delivery
Application
Miniature Load Cell Force Transducers are widely used in electronic pricing scales, platform scales, case scales, electronic belt scales, sorting scales, truck scales, dynamic rail scales, large tonnage hopper scales and other devices.
