BRG-LY107 S Beam Load Cell With Small Working Range
Features
1. Pull pressure two-way force ·
2.The structure i s compact ·
3.The comprehensi ve accuracy is high ·
4.Long-term stabi l i ty i s good ·
5.Quality al l oy steel with nickel plating ·
6.Universal material test machine, hopper scale, hook scale, packaging scale, belt scal e, plug force tester and other pull pressure test i nstruments and automation equipment and test fiel ds.
Description
S Beam Load Cells have a metal spring element that deforms when a force or weight is placed on the load cell. The strain gauge in the load measures the fractional change in the length of the deformation. S beam load cells are used in scales and tension applications.
Electrical Connection
Technical Data
|
qualification |
||
|
Rated quantitative schedule |
Kg |
200 |
|
Output sensitivity |
mV/V |
1.0-2.0 |
|
Zero point output |
%F.S. |
±2 |
|
Non-linear |
%F.S. |
0.05 |
|
lag |
%F.S. |
0.03 |
|
Repeatability |
%F.S. |
0.03 |
|
Creep (30 min) |
%F.S. |
0.03 |
|
Temperature sensitivity drift |
%F.S./10℃ |
0.03 |
|
Zero temperature drift |
%F.S./10℃ |
0.05 |
|
Response frequency |
Hz |
1k |
|
Material |
stainless steel |
|
|
impedance |
Ω |
350 |
|
Insulation resistance |
MΩ/100V DC |
≥5000 |
|
Use voltage |
V |
5-10 |
|
Operating temperature range |
℃ |
-20-80 |
|
Safety overload |
%R.C. |
150 |
|
Extreme overload |
%R.C. |
200 |
|
Cable line specifications |
m |
Φ3*2m |
|
Cable limit pull force |
N |
98 |
|
TEDS |
selectable |
|
1 ) High temperature sensors are availabl e, wi th a maxi mum operating temperature of 1 50℃.
2) High impedance sensors can be provided with an output impedance of 1 000 Ω
Dimension (mm)
Force Diagram
High-quality 17-4PH stainless steel
All stainless steel material, corrosion-resistant, strong mechanical fatigue resistance, long service life. BRG-LY107/108/109, high precision, anti-eccentric load, tension and compression integration..
Cable
3mm outer diameter wire has stable signal and strong anti-interference.

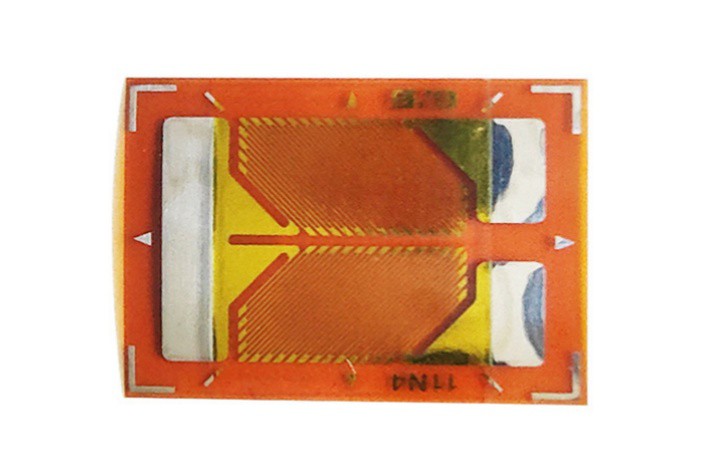

AVIC high-precision strain gauges
High measurement accuracy, and can work in extreme environments such as high temperature, low temperature, and high pressure.
Application Tension Force Transducer
● crane scales
● hopper scales
● tensile testing
● test benches
● tension control
● machine testing
Package
Equipment
Factory
