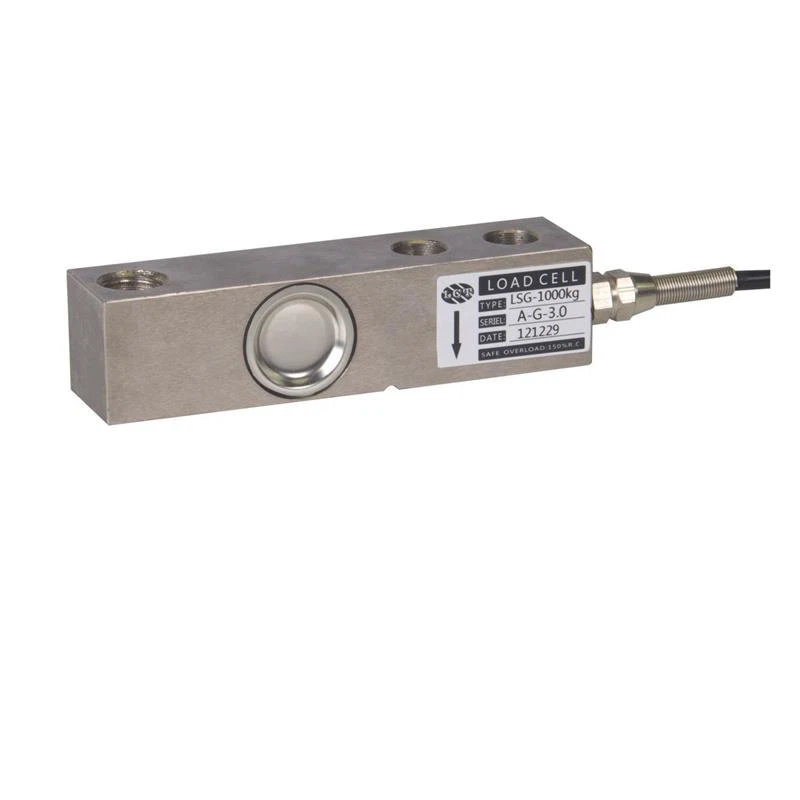

Bending Beam Load Cell BRG807
Features
● Single-ended shear beam
● capacity: 500kg, ... ,5000kg
● Accuracy: 0.03%R.O.
● Alloy steel construction with nickel plated treatment
● Output adjustment for parallel using
● Environment protection class: IP67
● Available accessories(option): load foot
Description
Bending beam load cells are made in low profile. Theses load cells are of good side load resistance and relatively insensitive to the point of loading. Advantages of Single-ended shear beam load cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),one unit or 4-matched units to build up a scale.With our leading technology in laser welding,shear beam load cells can be made to a higher protection grade of IP67.
This load cells are designed to this "Single-ended shear beam" type and manufactured from high quality alloy steel of aviation standard. This load cells can be used to measure loads range from 500kg to 5000kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 3mV/V output signal.
Dimension
Electrical Connection
Technical Data
Rated Capacity | 500, 1000, 2000, 3000 (kg) |
Accuracy Class | B |
Rated Output | (2.0-3.0) ± 0.25 %mV/V |
Zero Balance | ±2%R.O. |
Input Resistance | 385±10Ω |
Output Resistance | 350±3Ω |
Linearlty Error | ±0.03%R.O. |
Repeatability Error | ±0.03%R.O. |
Hysteresis Error | ±0.03%R.O. |
Creep in 30 Min. | ±0.03%R.O. |
Temp.Effect on Output | ±0.03%R.O./10℃ |
Temp.Effect on Zero | ±0.05%R.O./10℃ |
Compensated Temp.Range | -10－+40℃ |
Excitation,Recommended | 5－12VDC |
Excitation,Maximum | 18VDC |
Operating Temp.Range | -20－+60℃ |
Safe Overload | 150%R.C. |
Ultimate Overload | 200%R.C. |
Insulation Resistance | ≥2000MΩ(50VDC) |
Cable,Length | ø5mm× 3m * |
Protection Class | IP67 |
Application
Platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales, etc.
