Side Mount Float Switch Liquid Level Controller
The liquid level switch is compact and lightweight, making it easy to install even in space-constrained environments. Its simple working principle ensures ease of operation and low maintenance requirements, while the robust construction delivers stable performance over long-term use. With high sensitivity, the switch can quickly and accurately detect changes in liquid levels, providing reliable control and protection for tanks, containers, and fluid systems. This combination of compact size, straightforward operation, dependable stability, and rapid response makes it ideal for applications in water treatment, industrial processes, HVAC systems, and various liquid monitoring scenarios.
Technical Parameters
|
Wiring method |
Two wires and three wires |
|
|
Float materials |
PP/POM/NBR/SUS304/316L |
|
|
Body materials |
PP/POM/SUS304/316L |
|
|
Contact life |
10^8 times |
|
|
Protection level |
IP65/IP66/IP67 |
|
|
Leads and terminals |
Can be customized |
|
|
Installation method |
Multiple installation methods such as thread/flange/chuck/junction box |
|
|
Connection type |

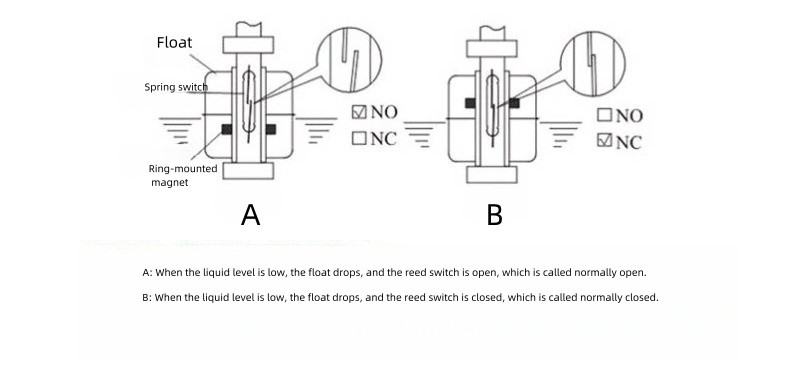

Normally open, normally closed, changeover type A(ON)/B(NC)/C(CO) |
|
|
Max power |
10W |
50W |
|
Maximum switching voltage |
100VDC/100VAC |
350VDC/300VAC |
|
Minimum breakdown voltage |
220VDC |
600VDC |
|
Maximum switching current |
0.5A |
1.5A |
|
Maximum switching current |
1.0A |
3.0A |
|
Maximum contact resistance |
100mΩ |
100mΩ |
|
Minimum insulation resistance |
10^9 Ω |
10^10 Ω |
Carefully Selected High-end Quality
The retaining spring design is simple and easy to operate, with manually adjustable normally open and normally closed positions, and can withstand high impact forces.
Highly Corrosion-resistant
The housing is made of insulating plastic, which is safe, environmentally friendly, corrosion-resistant, and has a long service life.
Small Size And Easy Installation
The compact size takes up little space, making installation simple and convenient. The float switch direction can be adjusted by switching the float.
competitive advantage
Various types
Various liquid level switches, complete categories,which can meet different kinds of applications.
Strong production capacity
More than 200 workers, more than 30 production and assembly lines, and a monthly production capacity of 2 million pieces.
24H Online Service
12 months warranty. 7*24 servince on line . One-on-one engineers provide professional solutions.
Global Shipping
We can arrange delivery all over the world by air express and by sea cargo. We will make sure the fast delivery and safety.
Our workshop
FAQ
Q: what is the lead time ?
A: Normally the lead time is about 7-15 days.
Q: Can you customized for us ?
A: Yes, we can customize according to customers' requirement . Just provide the drawing .
Q: How can you arrange delivery ?
A: For small quantity , we can send by air express ,such as DHL, UPS, Fedex . For big quantity , we can arrange delivery by sea cargo .
Q: About samples:
A: Yes, we will provide samples before the bulk order .
Q: About guarantee:
A: 12 months
