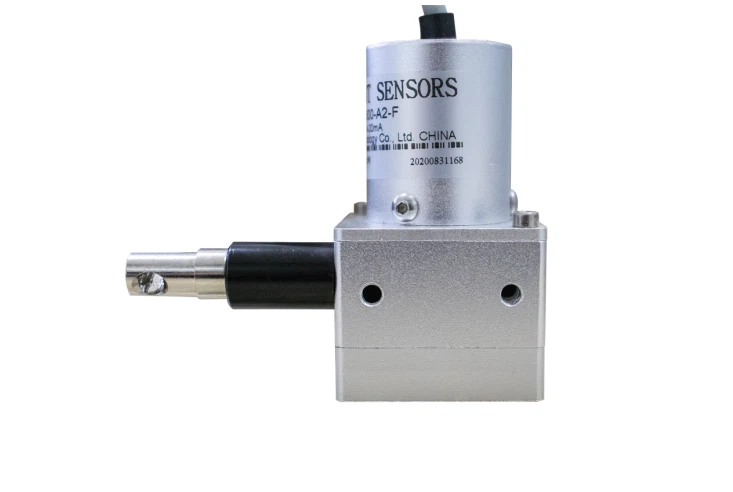

BRG-XS Linear String Potentiometer
The resistance output type of the rope displacement sensor is commonly used for 5V, 10V power supply, and outputs 0-5V, 0-10V voltage signals; voltage Output type and current output type are commonly used for 15-24V power supply, 12V power supply requires special instructions; RS485 output type is commonly used for 6-12VPower supply, 24V power supply requires special instructions. Three-wire current output and RS485 signal output require an external transmitter module.
The sensor shielding cable is equipped with 1 meter standard, the default internal thread draw rope head, and the external thread draw rope head is optional.
Technical parameter
|
Working range |
100-1000mm |
|
Linear precision |
±0.15% |
|
Repeatability accuracy |
±0.02% |
|
Resistance (±10%) |
5KΩ; 10 KΩ |
|
Resolution |
Infinite |
|
Max working voltage |
24V DC |
|
Output signal |
Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
|
Sensor type |
Encoder |
|
Max working speed |
1m/s |
|
Usage temperature |
-40℃- +80℃ |
|
Usage life |
5 million times |
Dimension
Wire connetion

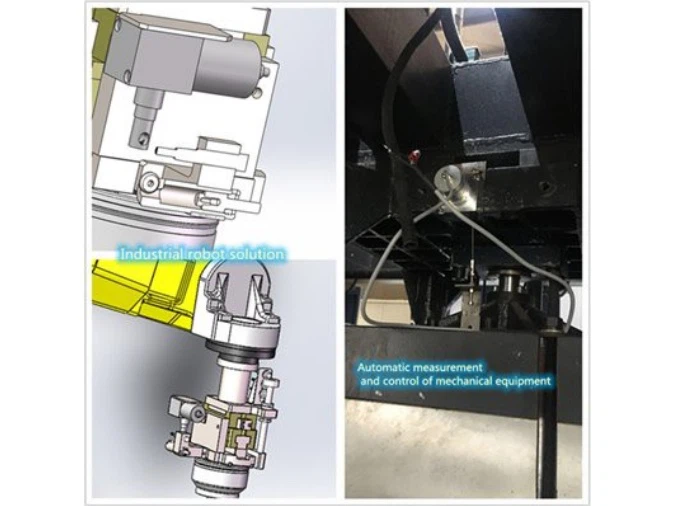

Storage positioning, da, protections, screw machines, paper machines, sewing machines, sheel metal machines, printing machins, horizontal control machines, industial robot, and so on.
We pack it with foam inside and with paper box , then we will pack it with carton. It is safe for long time and long distance delivery .
Delivery
The lead time of the sensor orders is 3-7 days .
For small quantity , we will send by air , such as DHL, Fedex, UPS, EMS and air cargo .
For big quantity , we can also arrange delivery by sea . We will provide all the document for customs clearance.
Payment
For the small amout , need to pay 100% payment in advance ;
For big order , need to pay 30% in advance , the balance will be cleaned before the delivery.
We accept T/T , Western Union , credit card .
Note of Linear String Potentiometer:
- Wrong wiring may damage the sensor
- Make sure wire in the power off state
- Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
- Do not exceed the total length of the wire
- Please ensure the cleanness of the equipment and wire line to prolong the service life
- Avoid external force
Our service
There are many variations of passages of available but the majority have s
1> The warranty period is 12 months .
2> If user comply with the instrument storage and use of rule conditions ,products due to quality problems during the warranty period is free to repair , except the following case:
A . Fault due to not comply with the conditions of use ;
B . Disassemble the sensor by yourself , lead to impact the use of products ;
3> When the products arise using problem, company promised to solve the problem at first , and then solve the problem costs involved, make sure customer satisfact.
Our Workshop
FAQ
Q1:What's the MOQ?
A: MOQ: 1 pc
Q2:What's the payment term?
A: We can accept T/T, Western Union
Q3:What's the lead time?
A: Standard encoder within 7 working days. Customized encoder need extra 2 weeks.
Q4:How to send the encoder ?
A: By express, like DHL, FedEx, TNT, UPS, EMS, etc. If you need, we can also arrange the shippment by air and by sea.
Q5: Can I get a customized encoder?
A: OEM, ODM service are available.
Q6:Can I have a sample encoder for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-30 sets including the sample
Q7:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance.
Q8:Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
