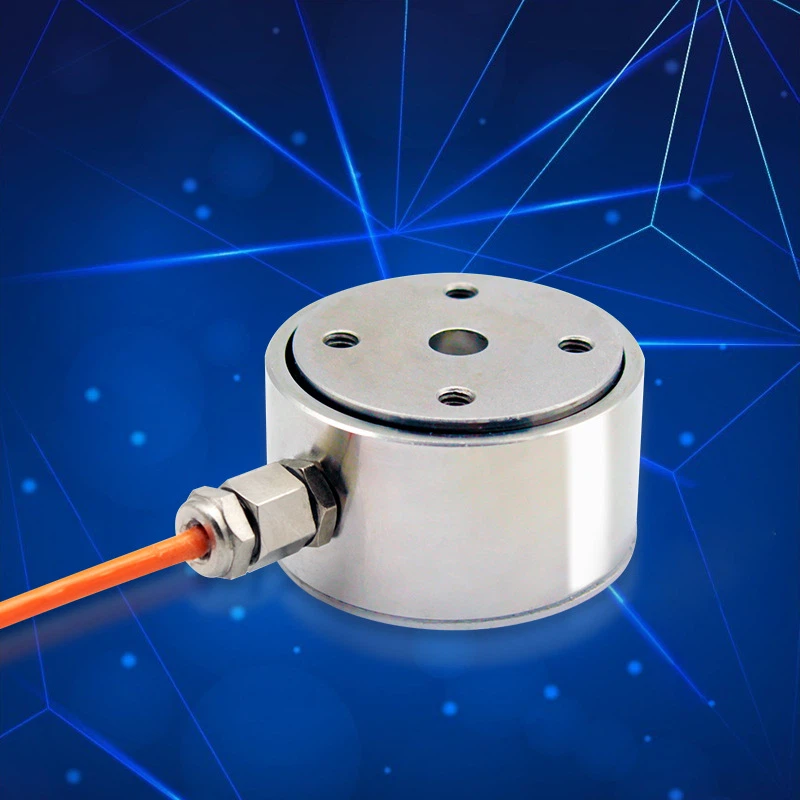

BRGZ-101 Mini Column Load Cell Compression Force Sensor
Technical Parameters
|
|
||
|
Rated quantitative schedule |
Kg |
0-2000 |
|
Output sensitivity |
mV/V |
2.0±0.05 |
|
Zero point output |
%F.S. |
±2 |
|
Non-linear |
%F.S. |
0.05 |
|
lag |
%F.S. |
0.03 |
|
Repeatability |
%F.S. |
0.03 |
|
Creep (30 min) |
%F.S. |
0.03 |
|
Temperature sensitivity drift |
%F.S./10℃ |
0.03 |
|
Zero temperature drift |
%F.S./10℃ |
0.05 |
|
Response frequency |
Hz |
1k |
|
Material |
stainless steel |
|
|
impedance |
Ω |
350 |
|
Insulation resistance |
MΩ/100V DC |
≥5000 |
|
Use voltage |
V |
5-10 |
|
Operating temperature range |
℃ |
-20-80 |
|
Safety overload |
%R.C. |
150 |
|
Extreme overload |
%R.C. |
200 |
|
Cable line specifications |
m |
Φ3*2m |
|
Cable limit pull force |
N |
98 |
|
TEDS |
selectable |
|
- High temperature sensors are available, with a maximum operating temperature of 150℃.
- High impedance sensors can be provided with an output impedance of 1000 Ω.
Dimension (mm)
|
Range(N) |
1 |
5 |
10 |
20 |
30 |
50 |
100 |
200 |
300 |
500 |
1000 |
2000 |
Force Diagram
It not only has strong chemical stability, but also has sufficient strength and plasticity, and has stable mechanical properties at a certain high or low temperature.
Application
Miniature column load cells are widely used in small weighing equipment such as electronic price scales, platform scales, and case scales;
They are also suitable for industrial weighing applications such as electronic belt scales and sorting scales;
Miniature column load cells can also be used in large weighing equipment such as track scales and truck scales;
In addition, miniature column load cells can also be used in various small space force measurement situations in industry, scientific research and other fields;
In short, miniature column load cells are widely used in various weighing applications due to their small size, high accuracy, and wide applicability.
